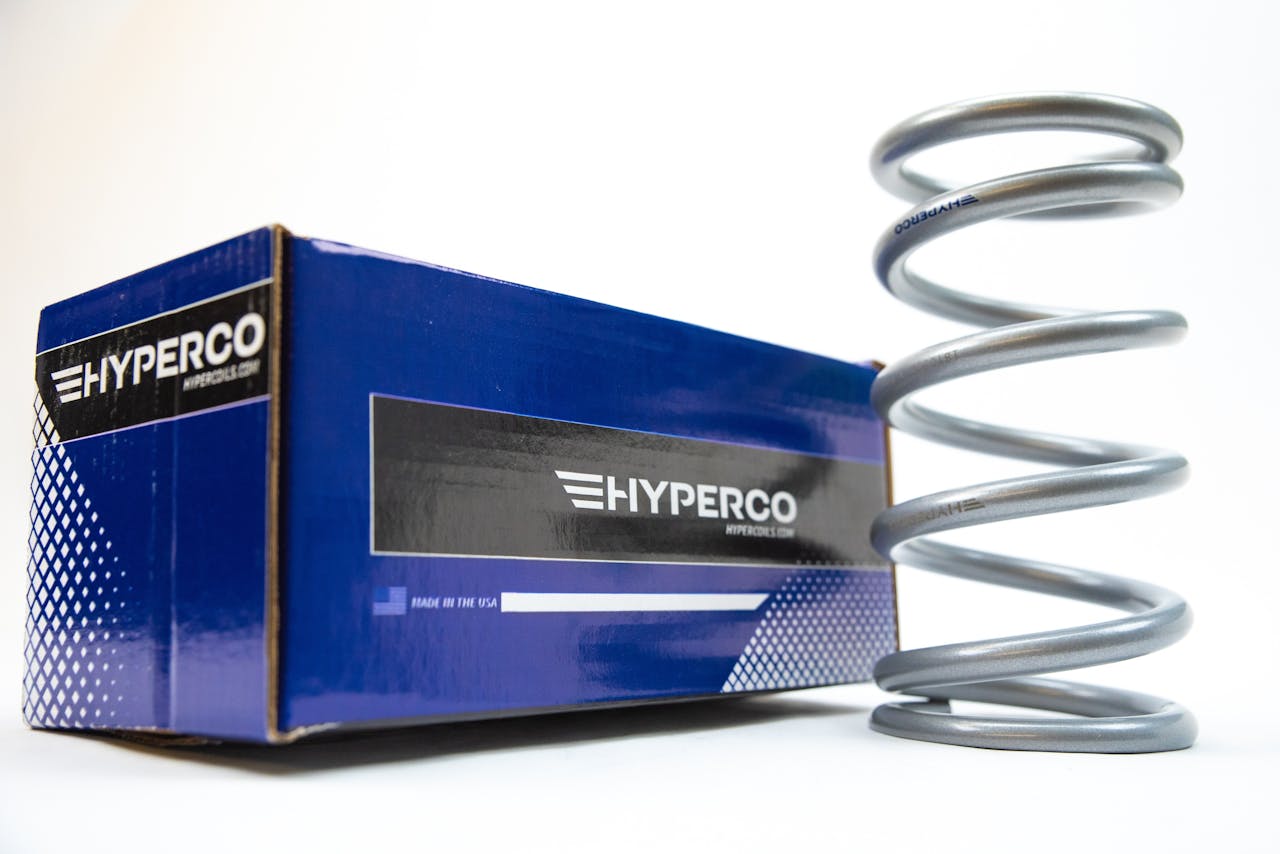

18SN-450 Conventional Spring

11 Inch long, 5 INCH OD, conventional suspension spring with a rate of 450 Inch Pounds that allows for 6.805 Inch of travel.

Unit System
View Spec Sheet
Specs (in standard)
Label Value
Brand Hyperco
Color Blue
Deflection 6.805 in
Display Name 18SN-450 Conventional Spring
Free Length 11 in
Load 3062 lb
Outside Diameter 5 in
Rate 450 lbf-in
Series SN
Solid Height 4.195 in
Specs (in metric)
Label Value
Brand Hyperco
Color Blue
Deflection 172.85 mm
Display Name 18SN-450 Conventional Spring
Free Length 279.4 mm
Load 1388.66 kg
Outside Diameter 127 mm
Rate 78.75 N-mm
Series SN
Solid Height 106.55 mm
Inventory Status
Low Stock

Need more information? Contact us for further questions.
