18SNP12-275 - 5.5 Inch OD, 12 Inch Conventional Springs

Inventory:
Estimated Lead Time

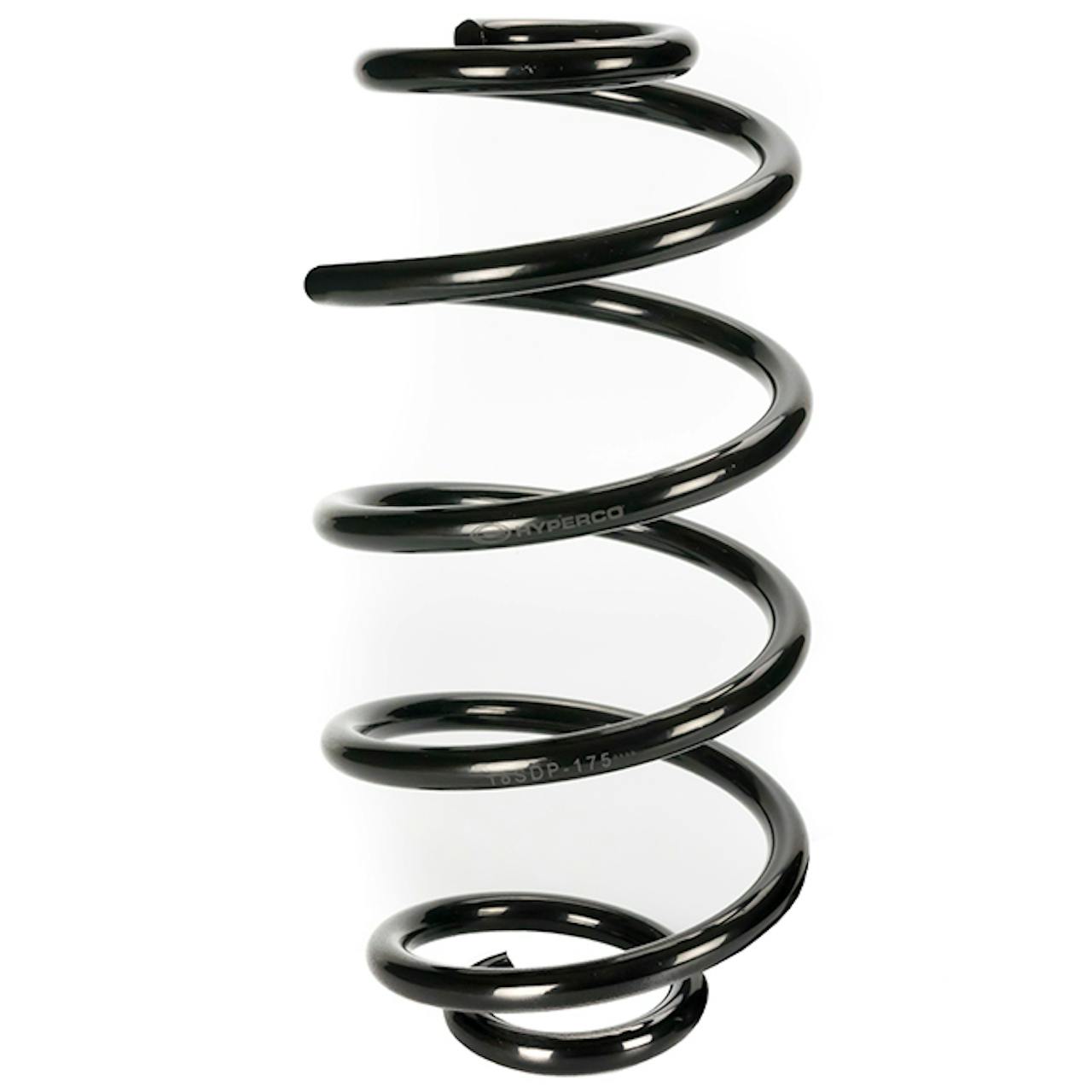

12 Inch long, 5.5 Inch OD, conventional suspension spring with a rate of 275 Inch Pounds that allows for 8.333 Inch of travel.

Unit System
Specs (in standard)
Label Value
Brand Hyperco
Color Silver
Deflection 8.333 in
Free Length 12 in
Load 2291 lb
Outside Diameter 5.5 in
Rate 275 lbs/in
SKU 18SNP12-275
Series SNP
Solid Height 3.667 in
Specs (in metric)
Label Value
Brand Hyperco
Color Silver
Deflection 211.66 mm
Free Length 304.8 mm
Load 1039 kg
Outside Diameter 139.7 mm
Rate 48.15 N-mm
SKU 18SNP12-275
Series SNP
Solid Height 93.14 mm
