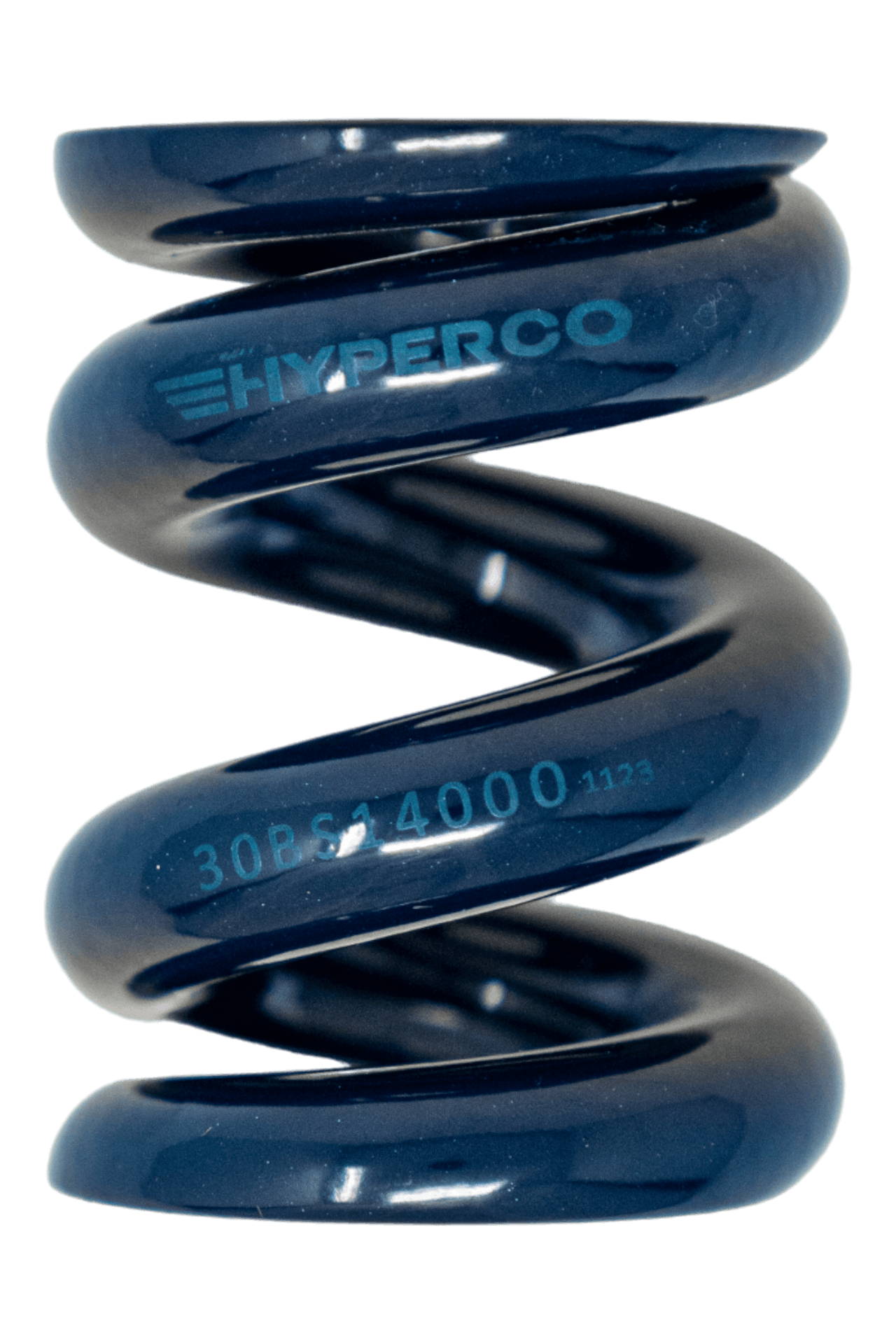

30BS14000 - 3 Inch, 14000 Inch Pounds Bump Springs

Inventory Status
In-stock

3 Inch, 14000 Inch Pounds bump spring that allows for 0.53 Inch of travel.

Unit System
View Spec Sheet
Specs (in standard)
Label Value
Brand Hyperco
Color Blue
Deflection 0.53 in
Free Length 3 in
Inside Diameter 1.92 in
Load 7354 lb
Outside Diameter 2.35 in
Rate 14000 lbs/in
SKU 30BS14000
Series BS
Solid Height 2.475 in
Specs (in metric)
Label Value
Brand Hyperco
Color Blue
Deflection 13.46 mm
Free Length 76.2 mm
Inside Diameter 48.77 mm
Load 3335.15 kg
Outside Diameter 59.69 mm
Rate 2451.4 N-mm
SKU 30BS14000
Series BS
Solid Height 62.87 mm
