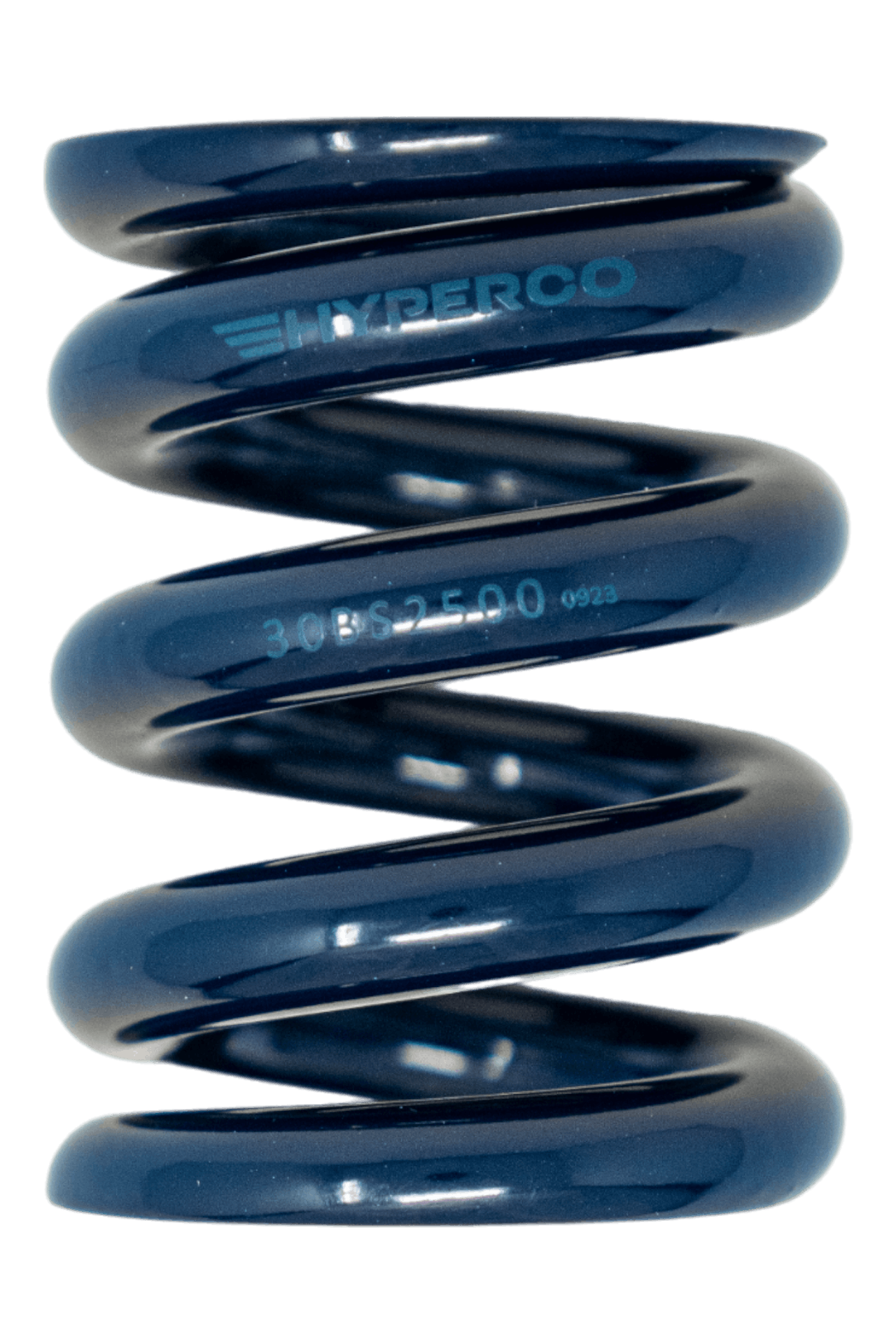

30BS2500 - 3 Inch, 2500 Inch Pounds Bump Springs

Inventory Status
In-stock

3 Inch, 2500 Inch Pounds bump spring that allows for 1.11 Inch of travel.

Unit System
View Spec Sheet
Specs (in standard)
Label Value
Brand Hyperco
Color Blue
Deflection 1.11 in
Free Length 3 in
Inside Diameter 1.44 in
Load 2768 lb
Outside Diameter 2.31 in
Rate 2500 lbs/in
SKU 30BS2500
Series BS
Solid Height 1.893 in
Specs (in metric)
Label Value
Brand Hyperco
Color Blue
Deflection 28.19 mm
Free Length 76.2 mm
Inside Diameter 36.58 mm
Load 1255.33 kg
Outside Diameter 58.67 mm
Rate 437.75 N-mm
SKU 30BS2500
Series BS
Solid Height 48.08 mm
