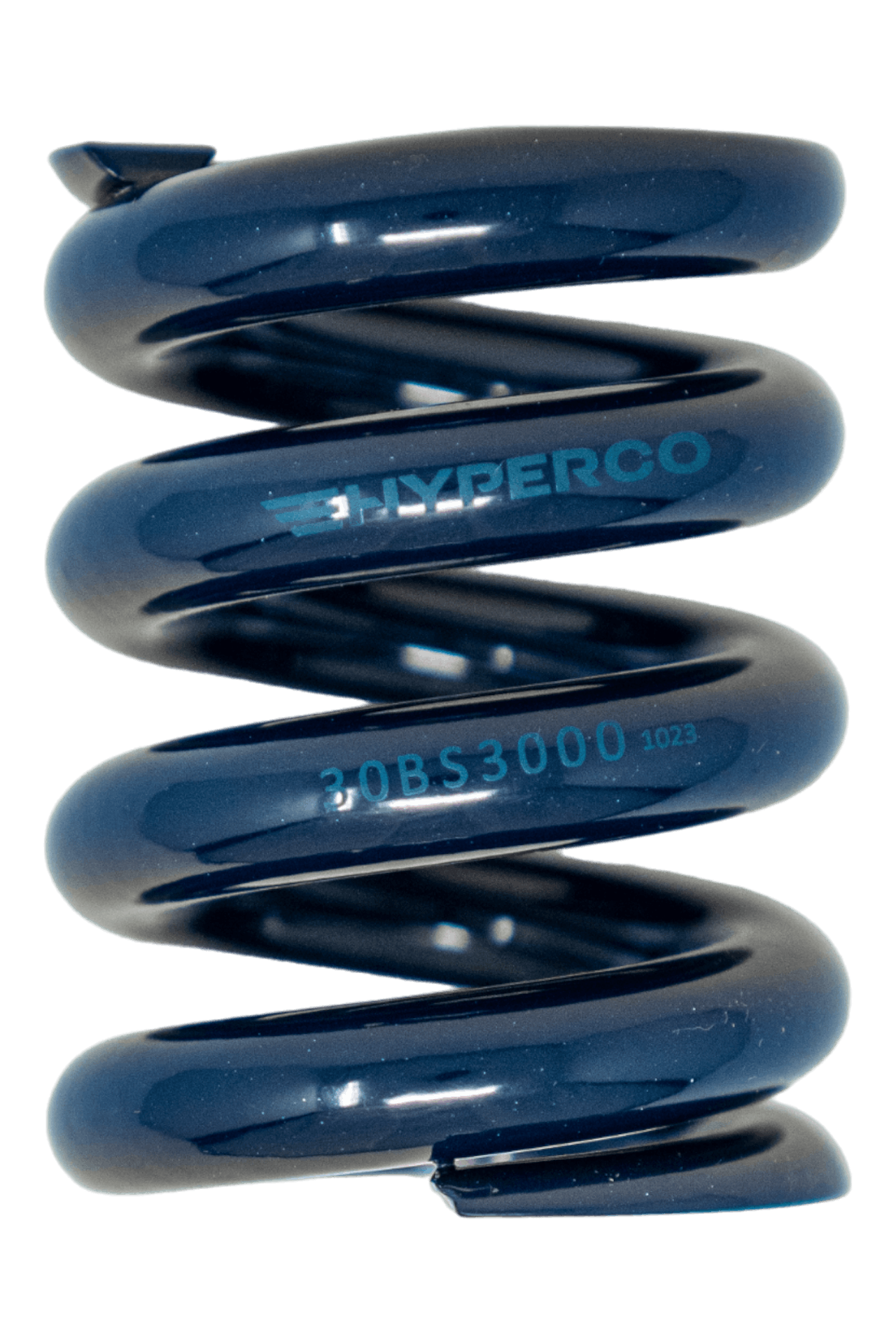

30BS3000 - 3 Inch, 3000 Inch Pounds Bump Springs

Inventory:
Estimated Lead Time

3 Inch, 3000 Inch Pounds bump spring that allows for 1.02 Inch of travel.

Unit System
Specs (in standard)
Label Value
Brand Hyperco
Color Blue
Deflection 1.02 in
Free Length 3 in
Inside Diameter 1.4 in
Load 3070 lb
Outside Diameter 2.31 in
Rate 3000 lbs/in
SKU 30BS3000
Series BS
Solid Height 1.977 in
Specs (in metric)
Label Value
Brand Hyperco
Color Blue
Deflection 25.91 mm
Free Length 76.2 mm
Inside Diameter 35.56 mm
Load 1392.29 kg
Outside Diameter 58.67 mm
Rate 525.3 N-mm
SKU 30BS3000
Series BS
Solid Height 50.22 mm
