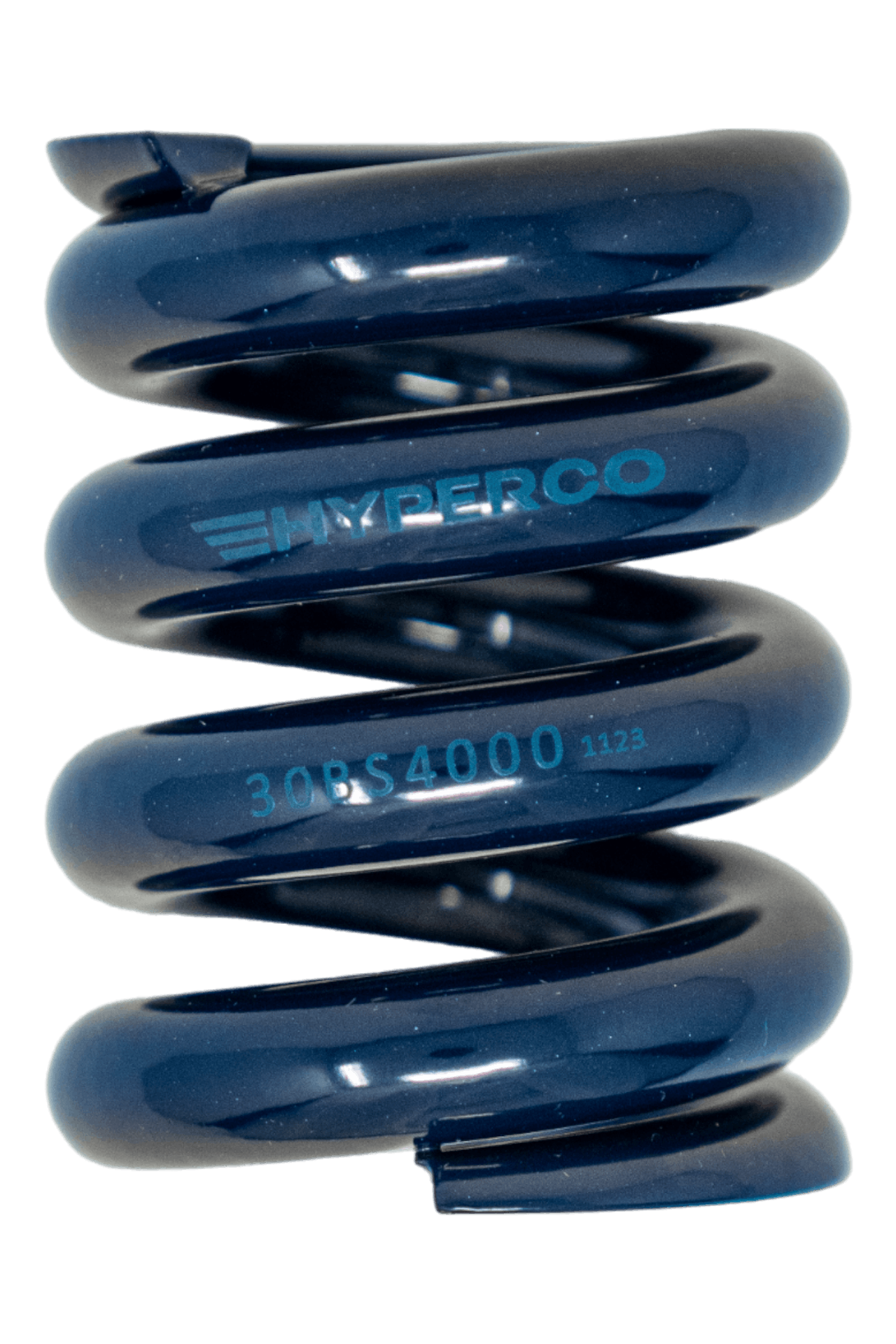

30BS4000 - 3 Inch, 4000 Inch Pounds Bump Springs

Inventory Status
In-stock

3 Inch, 4000 Inch Pounds bump spring that allows for 0.94 Inch of travel.

Unit System
View Spec Sheet
Specs (in standard)
Label Value
Brand Hyperco
Color Blue
Deflection 0.94 in
Free Length 3 in
Inside Diameter 1.35 in
Load 3740 lb
Outside Diameter 2.32 in
Rate 4000 lbs/in
SKU 30BS4000
Series BS
Solid Height 2.065 in
Specs (in metric)
Label Value
Brand Hyperco
Color Blue
Deflection 23.88 mm
Free Length 76.2 mm
Inside Diameter 34.29 mm
Load 1696.15 kg
Outside Diameter 58.93 mm
Rate 700.4 N-mm
SKU 30BS4000
Series BS
Solid Height 52.45 mm
