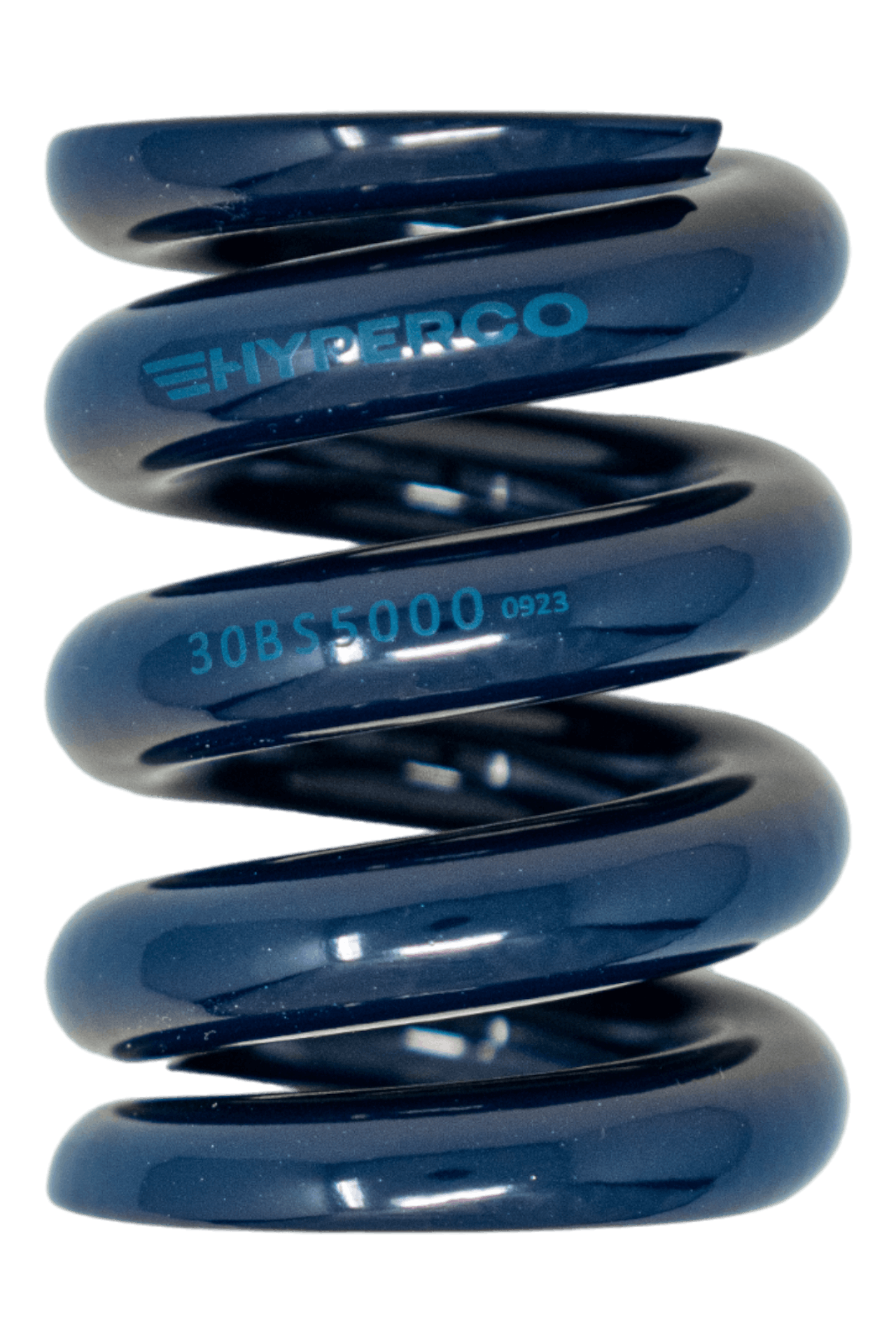

30BS5000 - 3 Inch, 5000 Inch Pounds Bump Springs

Inventory Status
In-stock

3 Inch, 5000 Inch Pounds bump spring that allows for 0.92 Inch of travel.

Unit System
View Spec Sheet
Specs (in standard)
Label Value
Brand Hyperco
Color Blue
Deflection 0.92 in
Free Length 3 in
Inside Diameter 1.31 in
Load 4574 lb
Outside Diameter 2.31 in
Rate 5000 lbs/in
SKU 30BS5000
Series BS
Solid Height 2.085 in
Specs (in metric)
Label Value
Brand Hyperco
Color Blue
Deflection 23.37 mm
Free Length 76.2 mm
Inside Diameter 33.27 mm
Load 2074.38 kg
Outside Diameter 58.67 mm
Rate 875.5 N-mm
SKU 30BS5000
Series BS
Solid Height 52.96 mm
