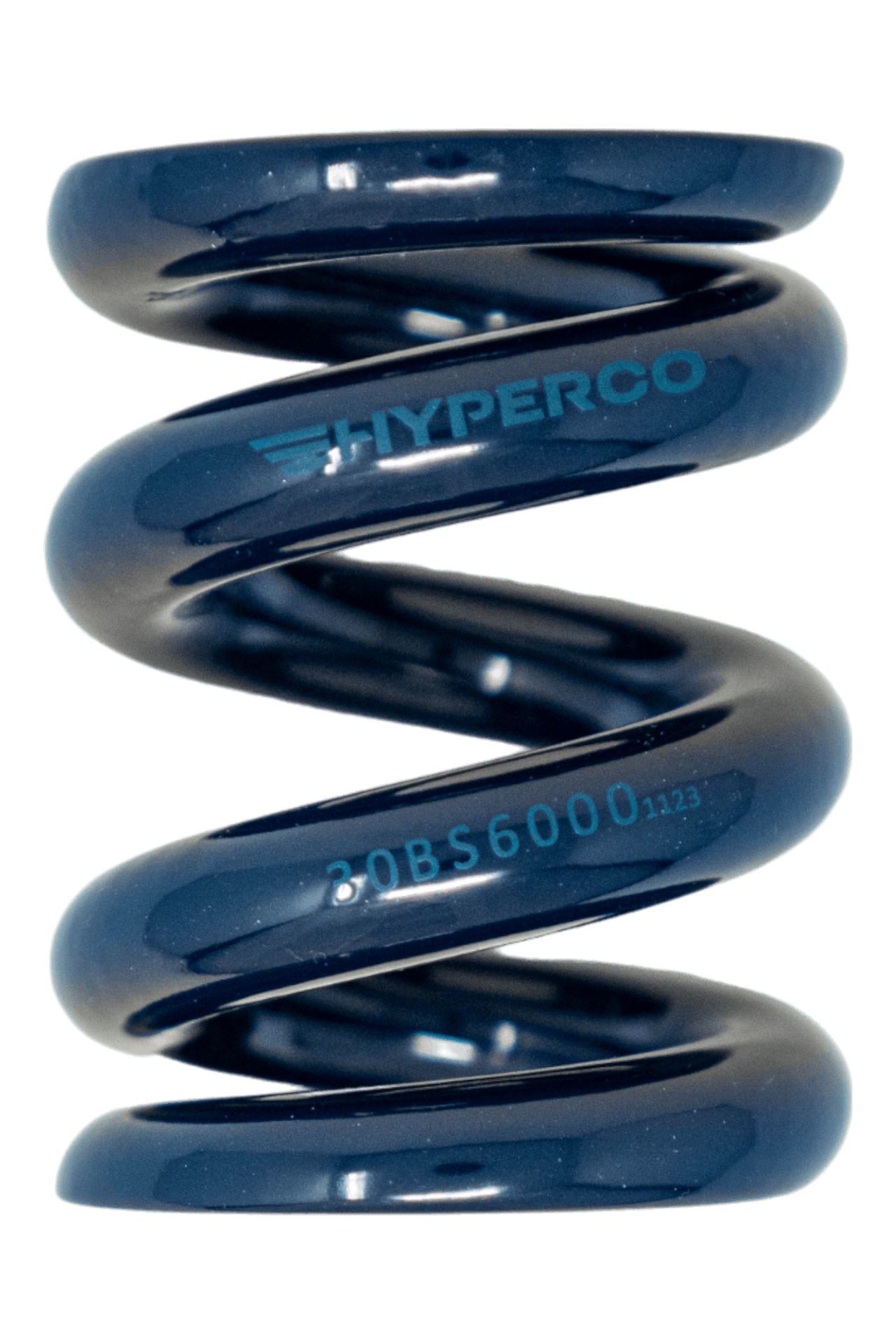

30BS6000 - 3 Inch, 6000 Inch Pounds Bump Springs

Inventory:
Estimated Lead Time

3 Inch, 6000 Inch Pounds bump spring that allows for 0.77 Inch of travel.

Unit System
Specs (in standard)
Label Value
Brand Hyperco
Color Blue
Deflection 0.77 in
Free Length 3 in
Inside Diameter 1.31 in
Load 4625 lb
Outside Diameter 2.3 in
Rate 6000 lbs/in
SKU 30BS6000
Series BS
Solid Height 2.229 in
Specs (in metric)
Label Value
Brand Hyperco
Color Blue
Deflection 19.56 mm
Free Length 76.2 mm
Inside Diameter 33.27 mm
Load 2097.51 kg
Outside Diameter 58.42 mm
Rate 1050.6 N-mm
SKU 30BS6000
Series BS
Solid Height 56.62 mm
