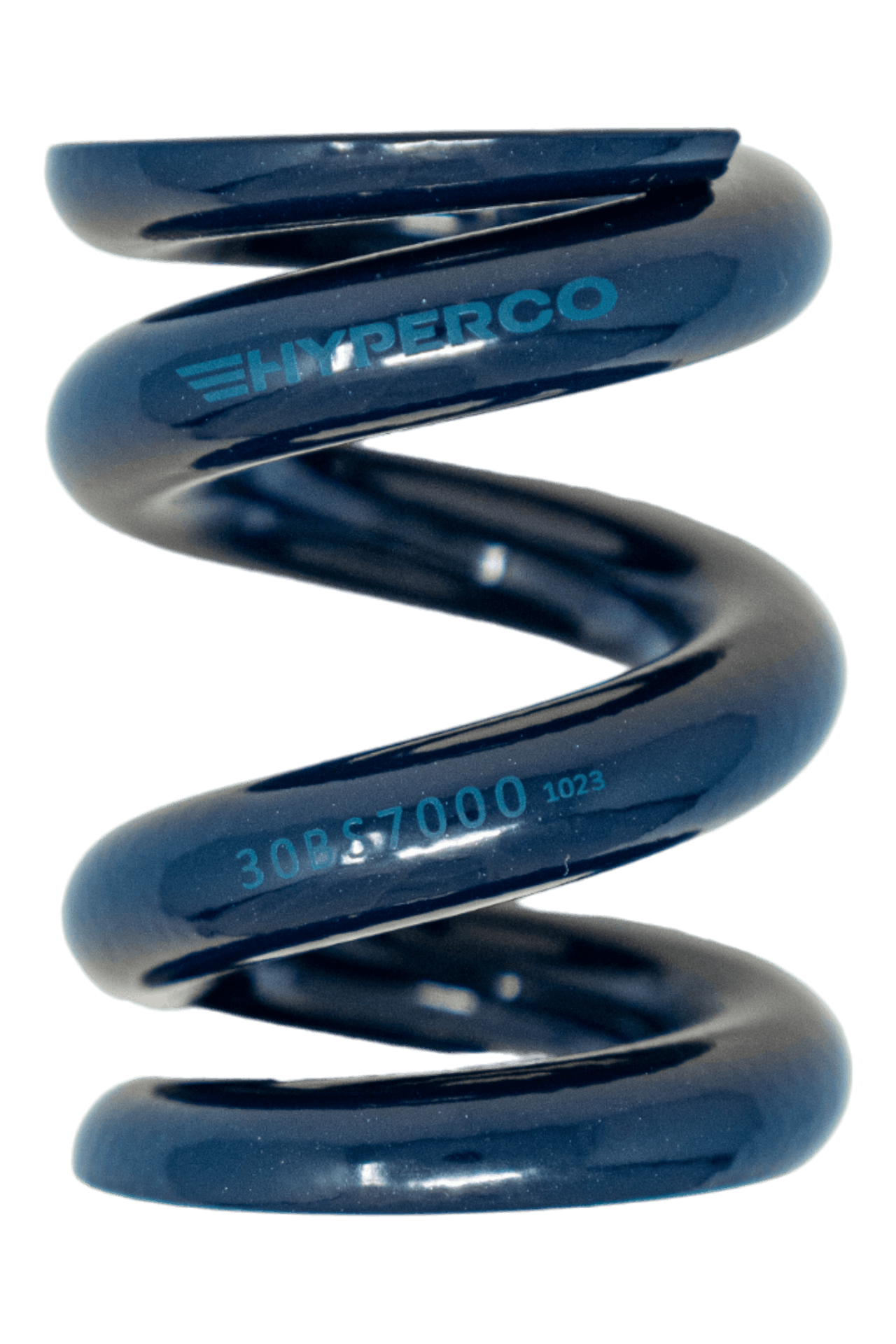

30BS7000 - 3 Inch, 7000 Inch Pounds Bump Springs

Inventory:
Estimated Lead Time

3 Inch, 7000 Inch Pounds bump spring that allows for 0.7 Inch of travel.

Unit System
Specs (in standard)
Label Value
Brand Hyperco
Color Blue
Deflection 0.7 in
Free Length 3 in
Inside Diameter 1.3 in
Load 4895 lb
Outside Diameter 2.31 in
Rate 7000 lbs/in
SKU 30BS7000
Series BS
Solid Height 2.301 in
Specs (in metric)
Label Value
Brand Hyperco
Color Blue
Deflection 17.78 mm
Free Length 76.2 mm
Inside Diameter 33.02 mm
Load 2219.95 kg
Outside Diameter 58.67 mm
Rate 1225.7 N-mm
SKU 30BS7000
Series BS
Solid Height 58.45 mm
