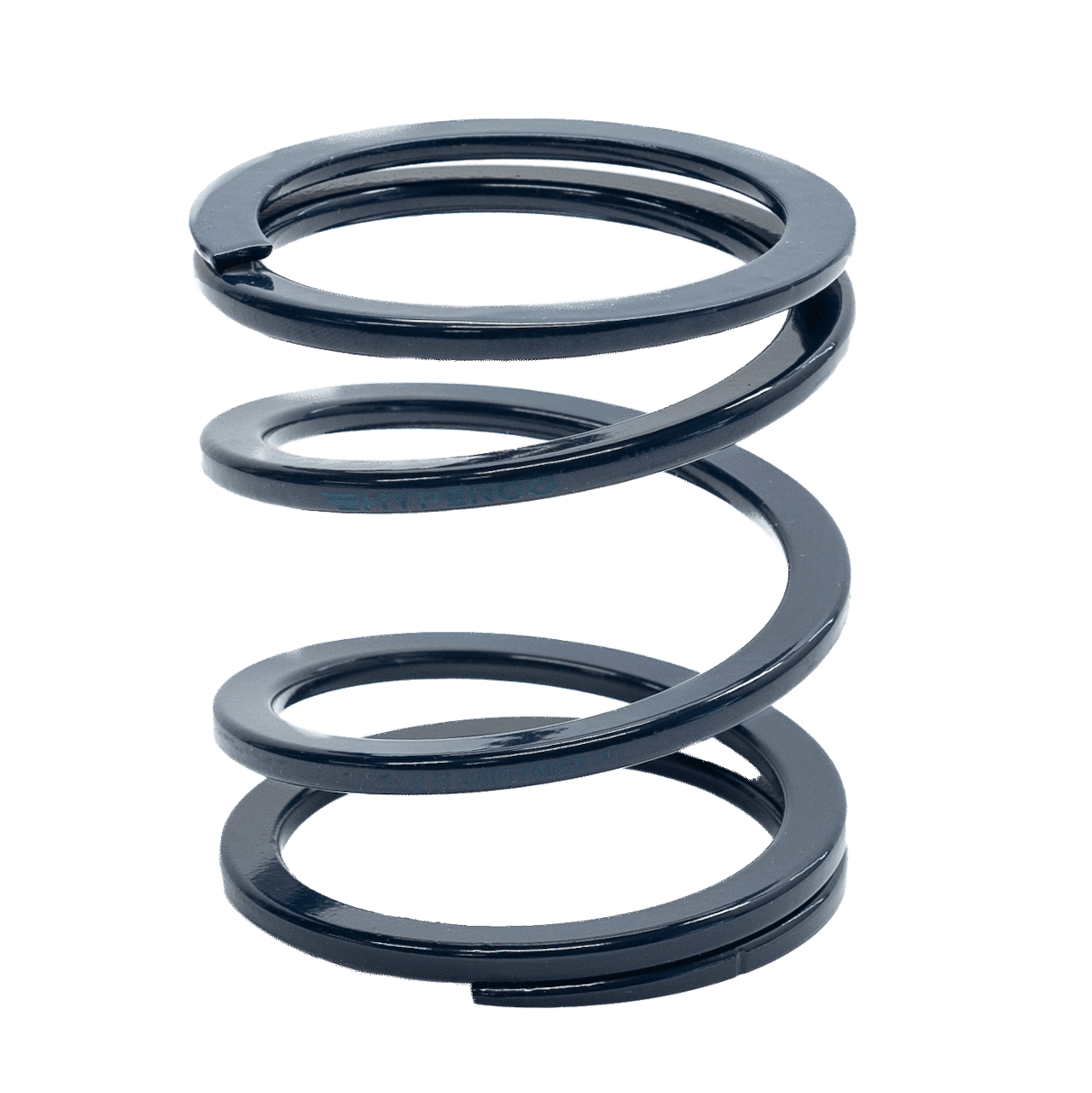

60-3.5-100TENDER Spring

100lbs/in tender spring designed for 60 millimeter ID, 3.50 inch length applications.

Unit System
View Spec Sheet
Specs (in standard)
Label Value
Brand Hyperco
Color Blue
Deflection 2.2 in
Free Length 3.5 in
Inside Diameter 2.3622 in
Load 220.1 lb
Max Wire Diameter 0.277 in
Outside Diameter 2.95 in
Rate 100 lbf-in
Solid Height 1.3 in
Total Coils 5.85
Wire Diameter 0.222 in
Specs (in metric)
Label Value
Brand Hyperco
Color Blue
Deflection 55.88 mm
Free Length 88.9 mm
Inside Diameter 60 mm
Load 99.82 kg
Max Wire Diameter 7.04 mm
Outside Diameter 74.93 mm
Rate 17.51 N-mm
Solid Height 33.02 mm
Total Coils 5.85
Wire Diameter 5.64 mm

You May Also Like

Inventory Status
In-stock
